Loading bellows for the loading of bulk materials
The loading bellows of the company LMB Lorentz Mühlenbau GmbH represents an optimal solution for dust-free loading of bulk materials. It is universally applicable and solves every individual problem by tailor-made adaptation.
The loading bellows of type LMB is available in three basic variants with different numbers of rope guides and different sizes.
Depending on the type, the loading bellows are supplied with:
- Hand guide ring
- Closing cone

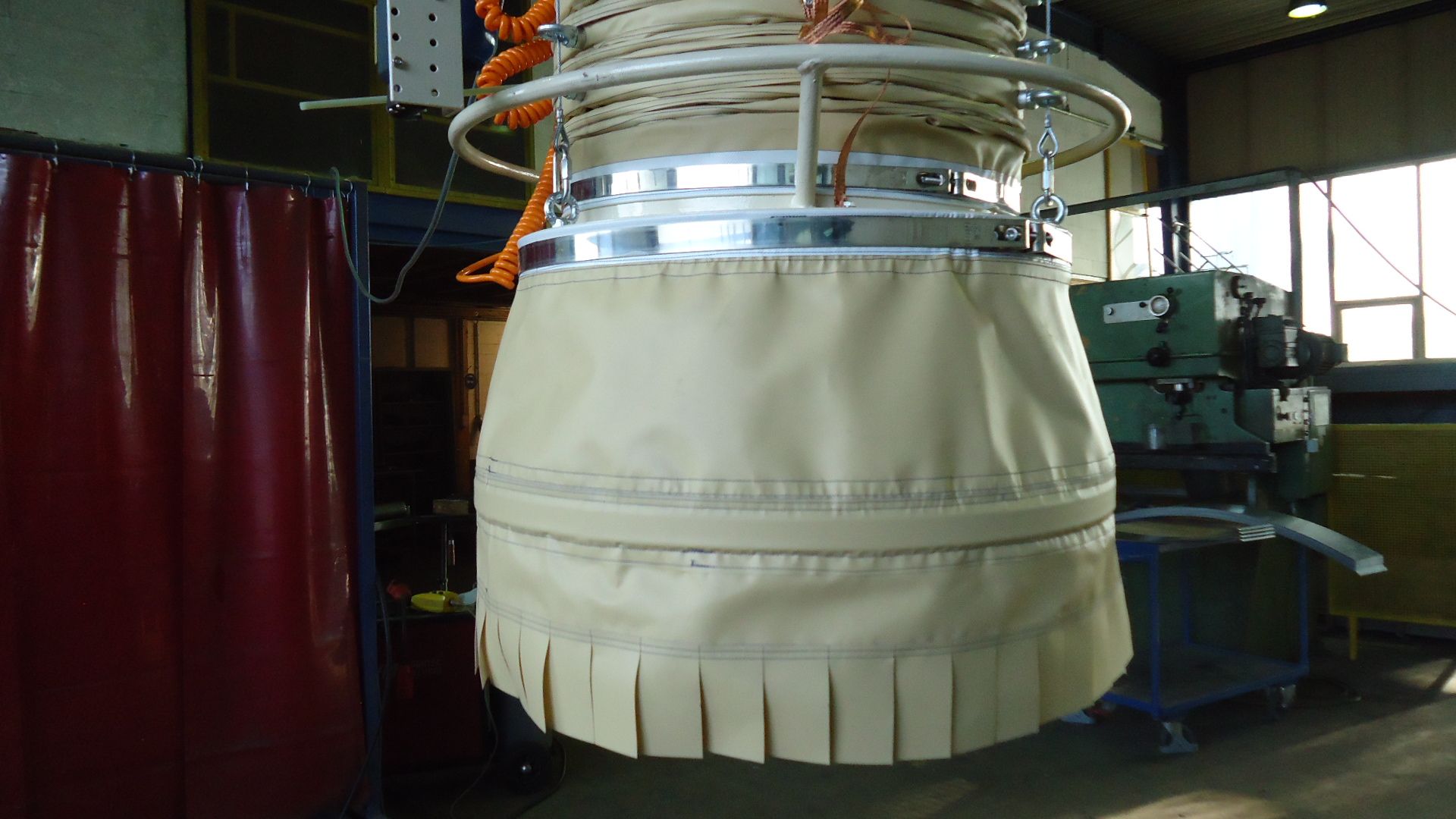

- Dust hood
- Full notifier
- Aspiration connection
... and thus offer safe and comfortable handling. LMB Lorentz Mühlenbau GmbH supplies replacement bellows for existing plants, also from other manufacturers.
LMB offers the following types:
- TW 30/00-S2-H
- TW 29/50-S1-E
- TW 30/50-S1-H
- TW 30/50-S1-E
- TW 30/50-S3-H
- TW 30/50-S3-E
- TW 40/60-S1-E

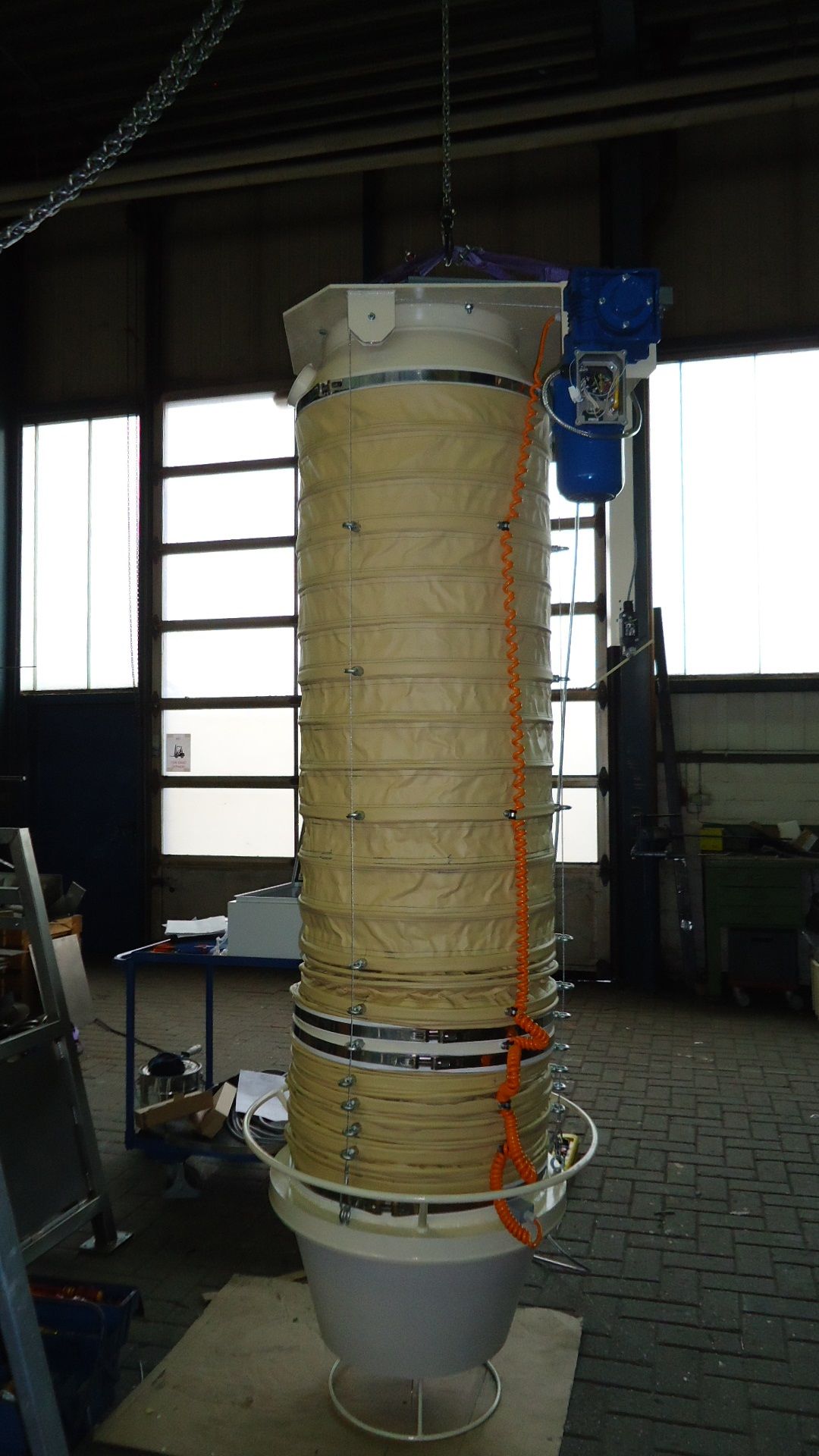

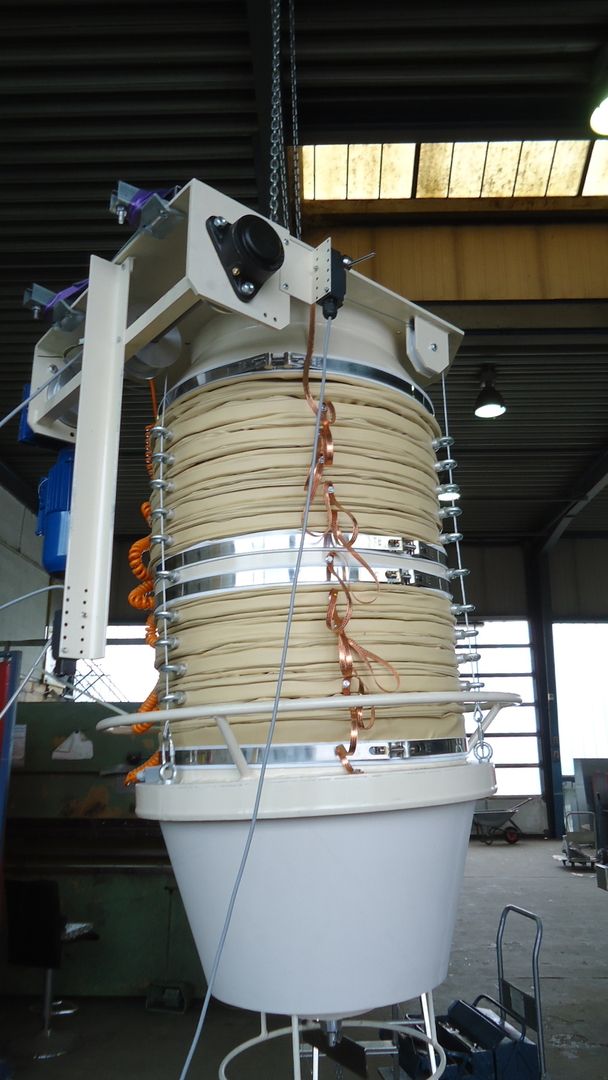

- TW 40/60-S3-E
- TW 50/70-S3-E
The respective type designations indicate the inner and outer diameter, the number of rope guides (S) and the type of winch (electric winch E or manual winch H).
If you have any questions about our offers or other requests, please feel free to send us an e-mail. We will get in touch with you as soon as possible. You can also simply call us on +49 (0) 5144 606440.
